Agents

An agent is a container deployed inside a customer's network. It is the one that reaches the devices: the platform never reaches them directly.

Why an agent

Three reasons, in that order of importance:

1. No inbound flow. The agent opens an outbound connection to the platform and keeps it open. Nothing to open on the customer firewall, no address to expose.
2. Devices are not routable from the provider. A customer management network is rarely reachable from outside, and that is exactly as it should be.
3. Data does not pass through the platform. The agent collects, then deposits straight into the object store. The platform stays sized for jobs, not for terabytes.

An agent serves one customer, permanently

The customer is chosen at declaration and is never changed. No endpoint allows it; the API answers 405 to any attempt to modify it.

To reassign a machine to another customer: revoke the agent — its certificate stops being accepted immediately — delete it, then declare a new one. The history of the runs it executed remains, with no agent attached.

This is not administrative red tape. An agent carries a certificate authorising it to receive a given customer's administration credentials, and to write into its repository. Moving that attachment would amount to giving a machine already in place access to another customer's secrets, without reissuing anything.

Enrolment

Enrolment exchanges a single-use token for an mTLS client certificate. It happens in two stages, in two different places.

1. Declare the agent (platform side)

Interface: Agents → + Agent. The customer is mandatory; for a new customer, the “＋ New customer…” option creates it in the same panel. Ticking “Issue an enrolment token straight away” saves a round trip.

Command line:

backup agent create acme agent-paris --name "Agent Paris DC1"
backup agent token acme agent-paris     # the token is shown once only

Also via the API.

# Declare
curl -s -X POST "$BASE/api/agents?tenant=$CUSTOMER" \
  -H "Authorization: Bearer $TOKEN" -H 'Content-Type: application/json' \
  -d '{"slug":"agent-paris","name":"Agent Paris DC1"}'

# Issue an enrolment token (valid 60 min by default)
curl -s -X POST "$BASE/api/agents/$AGENT/enrollment-token?tenant=$CUSTOMER" \
  -H "Authorization: Bearer $TOKEN"

The token is returned in clear only on this call. Only its fingerprint is kept: it cannot be read back afterwards.

2. Enrol the agent (customer side)

The agent needs two things: the token, and the platform's certificate authority.

# On the platform, fetch the authority
backup pki ca > ca.crt

# On the agent machine
backup-agent enroll --token <token> --ca ca.crt
backup-agent run

The authority is mandatory. Without it the agent would send its token — the only secret it holds — to a server whose identity it has not verified. The platform refuses enrolment rather than accept an unauthenticated connection.

In a container:

docker compose exec -T platform backup pki ca > pki/ca.crt
docker compose run --rm agent backup-agent enroll --token <token> --ca /ca/ca.crt
docker compose --profile agent up -d agent

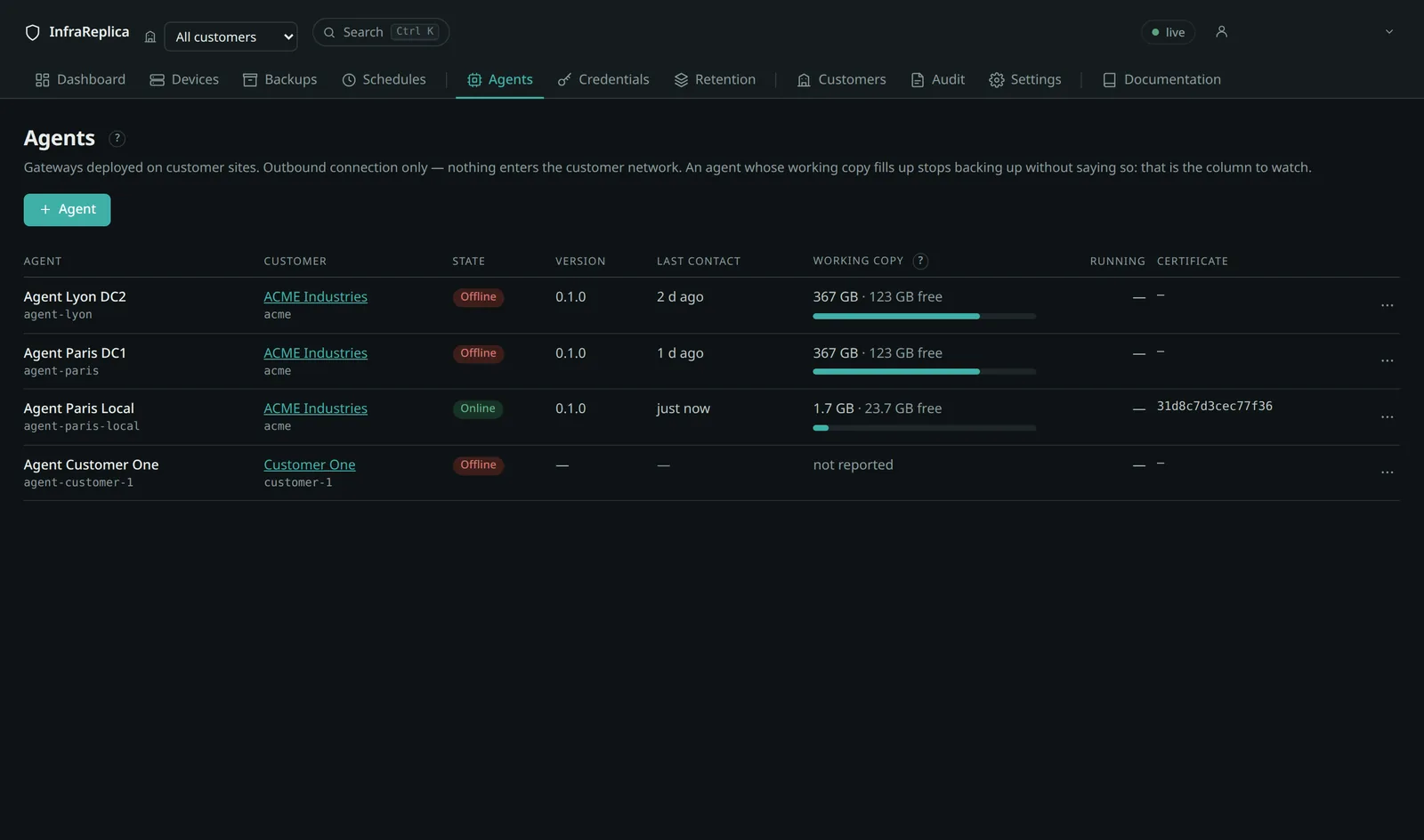

The agent then shows as “online” on the Agents screen, with its version and its working copy usage.

Two listeners, and why

Port	Protocol	What goes through it
9443	gRPC mTLS — client certificate required	jobs, hence device access credentials
9444	gRPC, server TLS only	enrolment, and nothing else

An agent enrolling has no certificate yet: demanding mutual authentication on that one call would be impossible. Rather than lowering the requirement everywhere, enrolment gets its own listener, bounded by a single-use, short-lived token.

BKP_GRPC_SERVER_NAMES lists the names under which agents reach the platform. They are carried as SANs of the server certificate: an agent reaching the platform under a name absent from that list fails TLS verification. It is the most frequent cause of an enrolment that refuses to complete.

Agent state

State	Meaning
Online	seen less than BKP_AGENT_OFFLINE_AFTER_MINUTES ago (15 min by default)
Offline	silent beyond that delay
Revoked	its certificate is no longer accepted

An offline agent does not block immediately: jobs stay queued. They turn abandoned after BKP_RUN_ABANDON_AFTER_MINUTES (180 min) for a scheduled job, and after BKP_MANUAL_RUN_ABANDON_SECONDS (45 s) for one requested by hand — somebody is waiting in front of a screen, and a queue that stays “queued” with no explanation is worse than an outright failure.

Versions, and how long an old agent keeps working

Platform and agents are published together and carry the same version number. That does not mean they must be upgraded on the same day: an agent sits inside a customer's network, and nobody will visit every site the afternoon the platform moves.

The agent list shows the version each one reports at every connection. That column is how you watch the fleet age.

Change	Agents already deployed
Patch release, 1.4.0 → 1.4.1	unaffected; the protocol does not change
Minor release, 1.4.0 → 1.5.0	the two previous minor versions keep working
Major release, 1.x → 2.0	may break; the release notes say so, and both sides are upgraded together

Upgrade agents anyway. An agent that lags collects the platform's fixes late, and an agent two minor versions behind is outside the window: it may keep working, and it may stop without a useful message. The release notes for each version state the window that applies to it.

The working copy

This is the column to watch. For Linux servers the agent keeps an rsync copy of the backed-up paths; its persistence is what makes the transfer incremental. An agent whose disk fills up stops backing up, and does so quietly.

The usage reported is the real size of that copy, not that of the volume hosting it; the capacity shown is the copy plus free space. The measurement is refreshed at most every five minutes, and immediately at the end of every job.

If the transferred share does not decrease from one snapshot to the next, the copy is not persisting: check that /var/lib/backupmssp/staging is indeed mounted on a volume.

Agent directories

The agent runs unprivileged. Everything it writes lives under a single tree, which belongs to it:

Path	Purpose	Mount on a volume
/var/lib/backupmssp/staging	rsync working copy	yes — its persistence makes the transfer incremental
/var/lib/backupmssp/cache	Kopia cache	recommended — rebuildable, but losing it costs a full re-read
/var/lib/backupmssp/kopia	repository configuration	no
/var/lib/backupmssp/work	working directory for a run	no — cleaned after every job
/etc/backupmssp/pki	agent key and certificate	yes — otherwise it must be re-enrolled at every restart

The Kopia cache is placed here deliberately, not under /var/cache, which belongs to root: an unprivileged agent cannot write there, and the failure only surfaces when creating the repository — after a connection and a transfer that both succeeded, which makes the diagnosis puzzling.

Revoking and deleting

Interface: the row menu on Agents, or the agent page.

# Revocation: the certificate stops being accepted, immediately
curl -s -X POST "$BASE/api/agents/$AGENT/revoke?tenant=$CUSTOMER" \
  -H "Authorization: Bearer $TOKEN"

# Deletion: refused (409) until the agent is revoked
curl -s -X DELETE "$BASE/api/agents/$AGENT?tenant=$CUSTOMER" \
  -H "Authorization: Bearer $TOKEN"

Deletion removes device attachments and enrolment tokens. Executed runs remain, with no agent: operational history is not configuration data, and it is not erased by removing a machine.

Lab mode

BKP_AGENT_REPLAY_FIXTURES makes the agent talk to captured outputs instead of real devices. Everything else is production code: queue, gRPC over mTLS, collectors, normalisation, fingerprints, Kopia repository, reporting and ingestion. Only the dialogue with the device is replayed.

That is what makes it possible to prove the chain end to end without hardware.

BKP_AGENT_REPLAY_FIXTURES=/opt/fixtures docker compose --profile agent up -d agent

It is disabled by default, and must stay so. An agent in lab mode produces backups that correspond to no real device. The agent refuses to enable this mode outside a dev, test or lab environment.

An agent in that state is flagged everywhere: red banner at the top of every screen, a pill in the agent list, a lab_mode marker in the JSON reports. Without it, a green dashboard would suggest the fleet is protected while the devices were never reached.

The symptom of an oversight is an error of this kind:

no capture for 'uname -a' (/opt/fixtures/linux_server/uname_a.txt)

The agent is looking for a capture because it is in lab mode, when it was expected to reach a real server.

What you then observe, end to end:

Step	Expected result
Connection test on a Cisco	established over ssh
Test on a Fortinet or an F5	established over api — their preferred transport
Backup of a Cisco	several artifacts, fingerprints computed after normalisation
Second backup	unchanged, no version added
Test on a device with no online agent	refused immediately, with the reason
Manual backup with no agent	fails after the delay, never “queued” indefinitely
